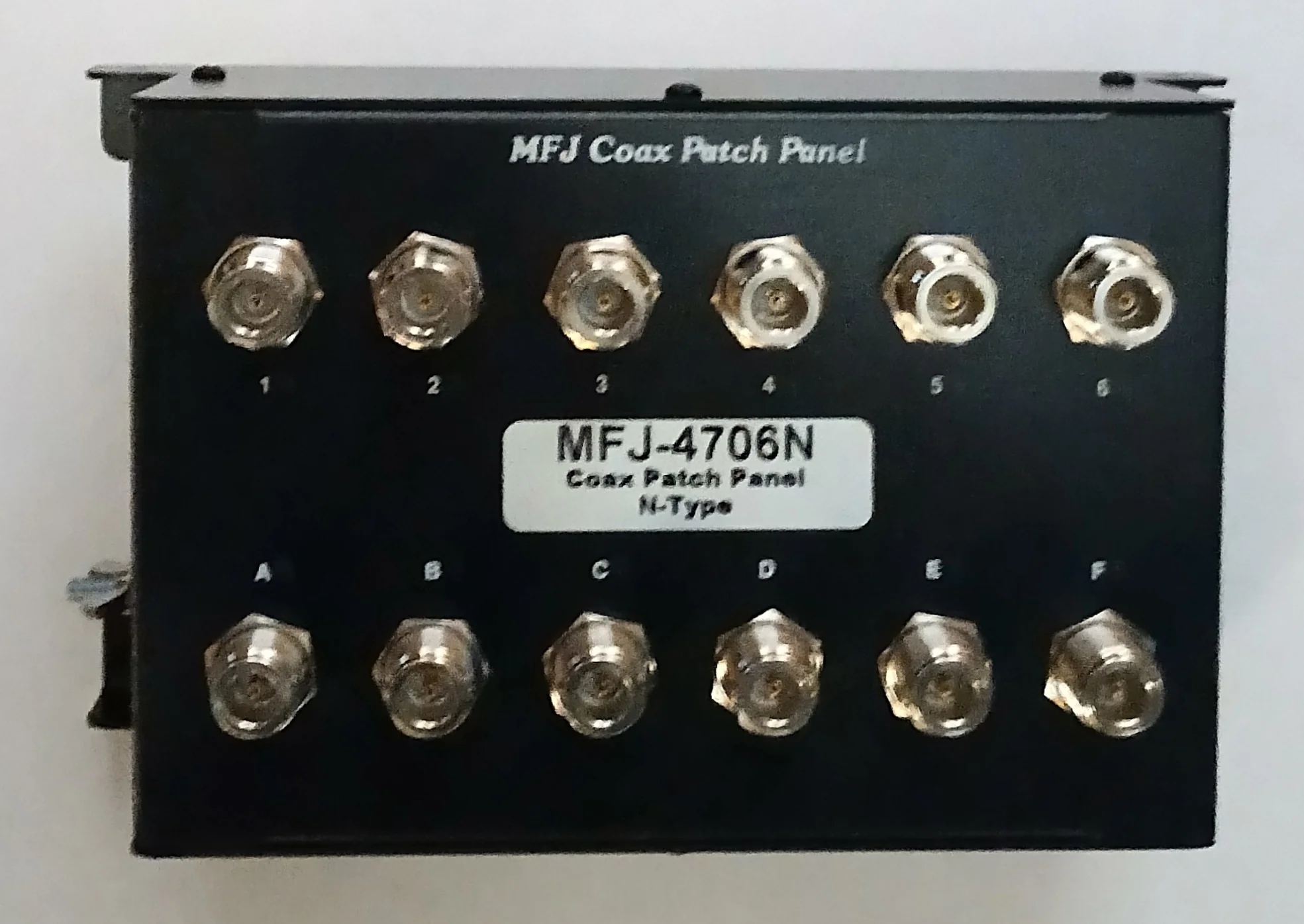

MFJ-4706N, Coax Patch Panel, 12 Positions, N-Type

MFJ Coax Patch Panel connects devices with virtually no loss, feed-thru or cross-talk

Provides 12 Teflon® N-Type coax feed-thru barrel connectors to patch 12 coax-fed devices together with short coax jumpers.

This extremely high performance and versatile military/professional patch panel approach has virtually no loss, no feed-thru and no cross-talk -- depends only on the quality of your coax -- and has far better performance than any switching system.

To use, connect your coax-fed devices (rigs, antennas, SWR/Wattmeters, tuners, amplifiers, pre-amps, switches) to the coax connectors inside the patch panel.

Each device is then available on the front panel and can be connected to any other device using a short coax patch cable. All devices can be used at the same time.

Cables enter through side or rear on either side, with a wing nut for ground. Side/back mounting tabs let you mount to wall, under table, on desk. 9" x 5" x 4".

MFJ-4704 - 8 coax devices, all SO-239 connectors

MFJ-4704N - 8 coax devices, all N-type connectors

MFJ-4704UN - 8 coax devices, 4 SO-239 and 4 N-type connectors

MFJ-4706 - 12 coax devices, all SO-239 connectors

MFJ-4706N - 12 coax devices, all N-type connectors

MFJ-4706UN - 12 coax devices, 6 SO-239 and 6 N-type connectors
